Brand Name : PLM
Model Number : PLJY54-500
Certification : CE
Place of Origin : CHINA
MOQ : 1 SET
Price : USD 16500/SET
Payment Terms : L/C, T/T, Western Union
Supply Ability : 5 SETS PER 30DAYS
Delivery Time : 20 DAYS AFTER DEPOSIT
Packaging Details : EXPORT STANDARD WOOD CARTON
Product name : Automatic Large Air Filter Outer Screen Spiral Type Center Tube Winding Machine
Diamond mesh width : 54mm
Product capacity : 10-20pcs/min
Roll diameter : Ф120-Ф500mm
The thickness of the steel plate rolling : 0.3-0.5mm
motor Power : 3kW
Power supply : 380v/50hz
M/C weight : 550kg
Automatic Large Air Filter Outer Screen Spiral Type Center Tube Winding Machine
Automatic Large Air Filter Outer Screen Spiral Type Center Tube Winding Machine General description
The equipment is suitable for the production of car air filter inner and outer diamond mesh
Automatic Large Air Filter Outer Screen Spiral Type Center Tube Winding Machine Features
Adopt computer control, high production efficiency, stable quality, reduce working procedure, save material can reduce production cost.
Automatic Large Air Filter Outer Screen Spiral Type Center Tube Winding Machine Specification
1 Diamond mesh width :54mm
2 Product capacity:10-20pcs/min
3 Roll diameter:Ф120-Ф500mm
4 The thickness of the steel plate rolling:0.3-0.5mm
5 motor Power:3kW
6 Power supply: 380v/50hz
7 Working air pressure:0.6mpa
8 M/C weight:550kg
9 M/C size: 1500×1700×2000mm(L×W×H)
10 The size of the machine:740×700×1100mm(L×W×H)

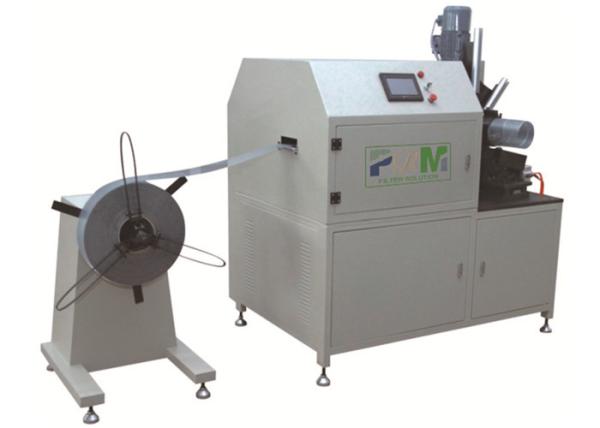

Automatic Large Air Filter Outer Screen Spiral Type Center Tube Winding Machine Photo
![]() |
Auto Air Filter Outer Screen Center Tube Winding Machine Spiral Type Images |
